FLIR FH-Series ID

fh-camera-iso-a-2_main-image

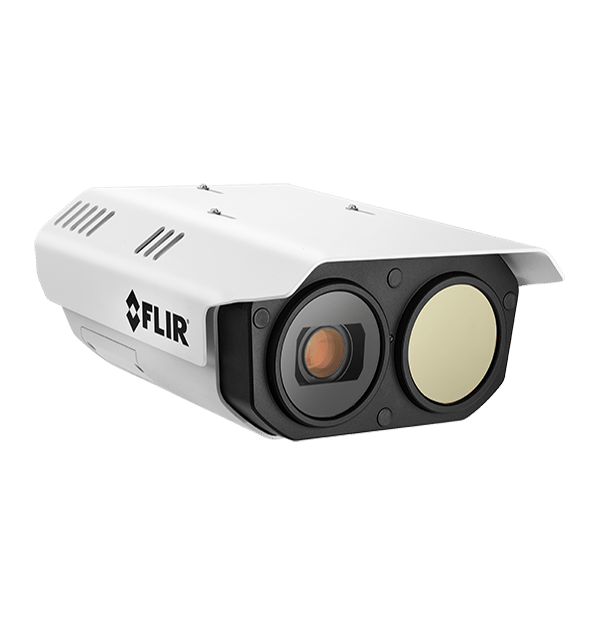

The FLIR FH-Series ID is a rugged multispectral fixed camera that combines high-resolution 4K visible imaging with proven FLIR thermal technology. Purpose-built for perimeter security, it delivers reliable detection and classification of human and vehicle threats—day or night, in any environment.

Equipped with onboard CNN-based analytics, the FH-Series ID intelligently distinguishes between real threats and environmental movement to reduce false alarms.

Spec Sheet

Download

Brochure

Download

Key Specifications

Dimensions (L × W × H) 314 × 233 × 124 mm (12.4 × 9.2 × 4.9 in.)
Power Consumption Nominal: 15 W
With heaters enabled (12 VDC): 48 W
With heaters enabled (all other inputs): 70 W
Surge Immunity (AC Power Lines) EN 50130-4
Surge Immunity (Signal Lines) EN 50130-4
Humidity 0–95% relative humidity
IP Rating IP66 & IP67 (dust and water ingress)
Operating Temperature -40°C to 70°C (-40°F to 158°F)
Storage Temperature -50°C to 85°C (-58°F to 185°F)
Shock IEC 60068-2-27
Vibration IEC 60068-2-64
