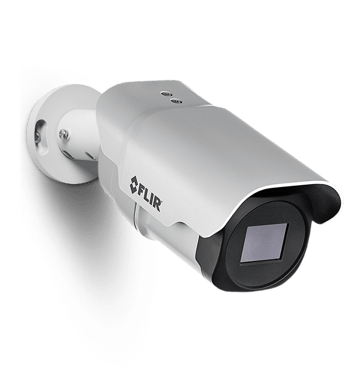

Elara™ FB-Series ID

fb-series-id



Designed for proactive intrusion detection, the FLIR Elara™ FB-Series ID uses onboard analytics to classify human and vehicle threats in real time. Ideal for sterile zones and perimeter monitoring, it performs reliably in harsh weather, complex terrain, and total darkness.

The FB-Series ID can also hand off intrusions to FLIR PTZ cameras for automated tracking—delivering a smart, layered defense solution.

Spec Sheet

Download

Brochure

Download

Key Specifications

Detector Type Long-life, uncooled VOx microbolometer
Dimensions 285 x 96 x 94 mm (11.1 x 3.8 x 3.7 in.) with sunshield and extended mounting arm
Effective Resolution 76,800 pixels
Focus Range Athermalized, focus-free
Input Voltage 12 VDC, 24 VAC, PoE
Power Consumption 12 VDC: 17 W (max with heaters)
24 VAC: 13 VA (max with heaters)
24 VDC: 13 W (max with heaters)
PoE: 13 W
Humidity 10%–90% relative humidity
IP Rating IP66 (dust & water ingress protection)
Operating Temperature -40°C to 50°C
Storage Temperature -20°C to 70°C
Regulatory FCC Part 15 (Subpart B, Class A), CE, EN55032, EN55024, RoHS, WEEE
